Degree Centrality

Degree centrality is simply the number of direct relationships that an entity has. An entity with high degree centrality:

• Is generally an active player in the network.
• Is often a connector or hub in the network.
• Is not necessarily the most connected entity in the network (an entity may have a large number of relationships, the majority of which point to low-level entities).
• May be in an advantaged position in the network.
• May have alternative avenues to satisfy organizational needs, and consequently may be less dependent on other individuals.
• Can often be identified as third parties or deal makers.

In our example network diagram above, Alice has the highest degree centrality, which means that she is quite active in the network. However, she is not necessarily the most powerful person because she is only directly connected within one degree to people in her clique—she has to go through Rafael to get to other cliques.

Betweenness Centrality

Betweenness centrality identifies an entity's position within a network in terms of its ability to make connections to other pairs or groups in a network. An entity with a high betweenness centrality generally:

• Holds a favored or powerful position in the network.
• Represents a single point of failure—take the single betweenness spanner out of a network and you sever ties between cliques.
• Has a greater amount of influence over what happens in a network.

In the example above, Rafael has the highest betweenness because he is between Alice and Aldo, who are between other entities. Alice and Aldo have a slightly lower betweenness because they are essentially only between their own cliques. Therefore, although Alice has a higher degree centrality, Rafael has more importance in the network in certain respects.

Closeness

Closeness centrality measures how quickly an entity can access more entities in a network. An entity with a high closeness centrality generally:

• Has quick access to other entities in a network.
• Has a short path to other entities.
• Is close to other entities.
• Has high visibility as to what is happening in the network.

As with the betweenness example, Rafael has the highest closeness centrality because he can reach more entities through shorter paths. As such, Rafael's placement allows him to connect to entities in his own clique, and to entities that span cliques.

Note: If the network contains any entities that are un-linked (i.e. not linked to any other entities), the Closeness value for all entities in the network is 0. This is due to formulas and algorithms established in Social Network Analysis.

Eigenvalue

Eigenvalue measures how close an entity is to other highly close entities within a network. In other words, Eigenvalue identifies the most central entities in terms of the global or overall makeup of the network. A high Eigenvalue generally:

• Indicates an actor that is more central to the main pattern of distances among all entities.
• Is a reasonable measure of one aspect of centrality in terms of positional advantage.

In this example, we can see that Alice and Rafael are closer to other highly close entities in the network. Bob and Frederica are also highly close, but to a lesser value.

Hub and Authority

Entities that many other entities point to are called Authorities. In Sentinel Visualizer, relationships are directional—they point from one entity to another. If an entity has a high number of relationships pointing to it, it has a high authority value, and generally:

• Is a knowledge or organizational authority within a domain.
• Acts as definitive source of information.

Hubs are entities that point to a relatively large number of authorities. They are essentially the mutually reinforcing analogues to authorities. Authorities point to high hubs. Hubs point to high authorities. You cannot have one without the other.

Using Social Network Analysis in Sentinel Visualizer

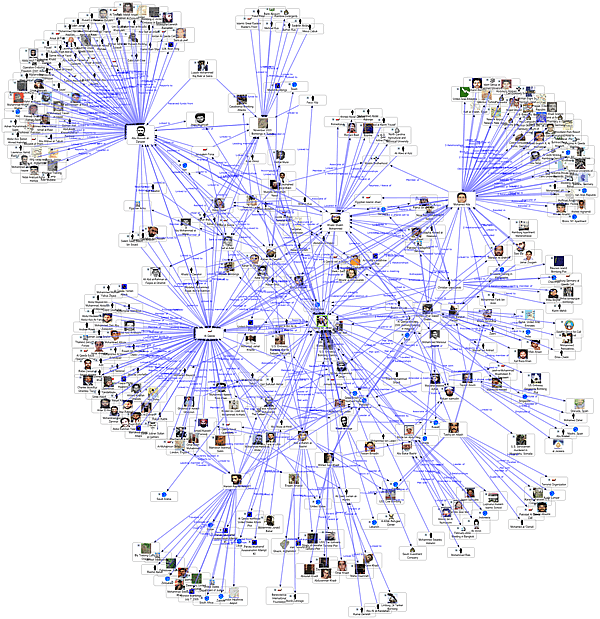

Take a look at the following network diagram:

From a visual standpoint, some clusters and centrality are visible. But the density of information makes it difficult to see all the centrality aspects. Sentinel Visualizer makes Social Network Analysis available with just a single click of a button. With any link chart visible, simply press the [Calculate] button and the program instantly calculates the Social Network Analysis Metrics for the items on the chart.

Now you can see centrality measures that clearly show the most central nodes in the network. You can sort by any Social Network Analysis number, or click on any node to find its place in the network.

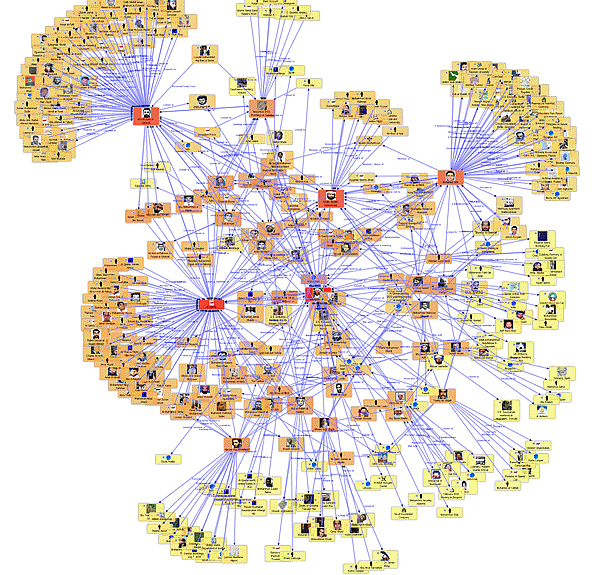

You can use the Gradient Metrics to instantly map Social Network Analysis Values to the graphic display. Simply click on any of the available metrics and Sentinel Visualizer color-codes each node on the network. Here is the same graph but with Gradient Metrics showing Closeness Centrality.

Going Further

Only Sentinel Visualizer makes it easy to apply the power of Social Network Analysis to your data. Use it to find hidden meaning, patterns, and trends in any data set.

Here's an MIT Technology Review article mentioning Sentinel Visualizer on Building a Picture of the Boston Marathon Bombing Suspects through Social Network Analysis.
